Small scale soap extruders for laboratory and small production
The small scale soap extruder (plodder) is the machine used after the mixer to refine, homogenize and compact the soap mass into a continuous bar ready for cutting and stamping.
This bench-top extruder is designed for small batch production, pilot plants, R&D laboratories and start-ups that need industrial-style processing on a reduced scale. The screw compresses the soap, removes air (in the vacuum version) and pushes it through an interchangeable die to obtain the required bar section.
Thanks to its compact footprint, simple installation and easy cleaning, the machine is suitable for frequent product changes and short production runs of toilet soap, hotel soap, syndet and cosmetic bars.
Main features of the small scale soap extruders
- Screw design: single-screw plodder optimized for small capacities, with geometry suitable for toilet, laundry and cosmetic soap formulations.
- Vacuum or non-vacuum execution: available as a simple non-vacuum bench-top extruder or with integrated vacuum chamber to reduce air content and improve bar density and appearance.
- Construction materials: stainless steel product-contact parts and robust painted or stainless structure for long service life and easy cleaning.
- Feeding hopper: manual loading of soap coming from the mixer or milling step, with safety grid and easy access for cleaning.
- Die and nozzle options: interchangeable dies for different bar widths and thicknesses, including rectangular and oval preforms for stamping.
- Cooling and temperature control: optional barrel cooling connections to control product temperature in continuous operation.
- Control panel: compact panel with main switch, start/stop, emergency stop and speed control (where applicable).
- Safety: guards and interlocks on moving parts, in compliance with applicable machinery safety directives.

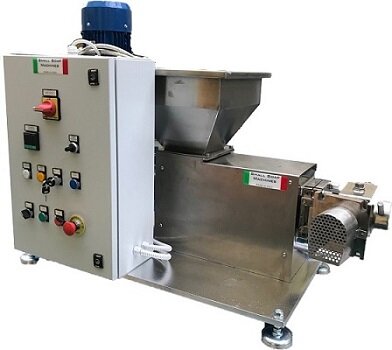

SIMPLEX SOAP EXTRUDER 80 – Laboratory Soap Extruder
The Simplex Soap Extruder 80 is a compact laboratory machine designed for small-scale soap trials, product development, and sample production. This laboratory soap extruder ensures smooth and consistent extrusion of refined soap, delivering uniform bars with excellent surface finish. Ideal for R&D environments, this laboratory soap extruder allows precise testing of formulations before scaling up to production.
Extrusion capacity up to 50 Kg/hour.

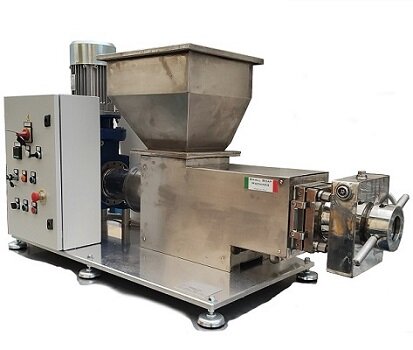

SIMPLEX SOAP EXTRUDER 120 – Pilot Soap Extruder
The Simplex Soap Extruder 120 is a pilot-scale extruder engineered to bridge the gap between laboratory testing and industrial production. It provides reliable and continuous soap extrusion with consistent density and shape, making it perfect for validating formulations and optimizing processing parameters. Its robust design and flexible capacity make it ideal for pilot plants and small batch manufacturing.
The Simplex Soap Extruder 120 is a pilot-scale extruder engineered to bridge the gap between laboratory testing and industrial production. It provides reliable and continuous soap extrusion with consistent density and shape, making it perfect for validating formulations and optimizing processing parameters. Its robust design and flexible capacity make it ideal for pilot plants and small batch manufacturing.
Extrusion capacity up to 100-150 Kg/hour.

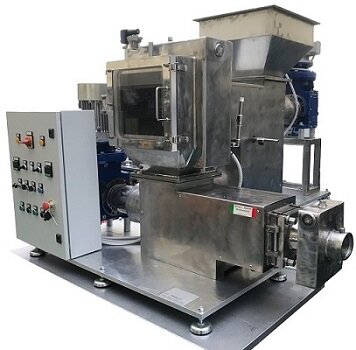

DUPLEX SOAP EXTRUDER 120 – Soap Extruder for Small Scale Soap Production
The Duplex Soap Extruder 120, also called Duplex Vacuum Plodder, is designed for small to medium-scale soap production, featuring a dual-stage extrusion system with an integrated vacuum chamber between the first and second stage. This advanced configuration removes air from the soap mass, improving compactness, hardness, and final product quality. Built for continuous operation, it ensures high output, superior bar finishing, and excellent process efficiency.
The Duplex Soap Extruder 120, also called Duplex Vacuum Plodder, is designed for small to medium-scale soap production, featuring a dual-stage extrusion system with an integrated vacuum chamber between the first and second stage. This advanced configuration removes air from the soap mass, improving compactness, hardness, and final product quality. Built for continuous operation, it ensures high output, superior bar finishing, and excellent process efficiency.
Extrusion capacity up to 100-150 Kg/hour.
